The right equipment at the right price to accommodate your needs.

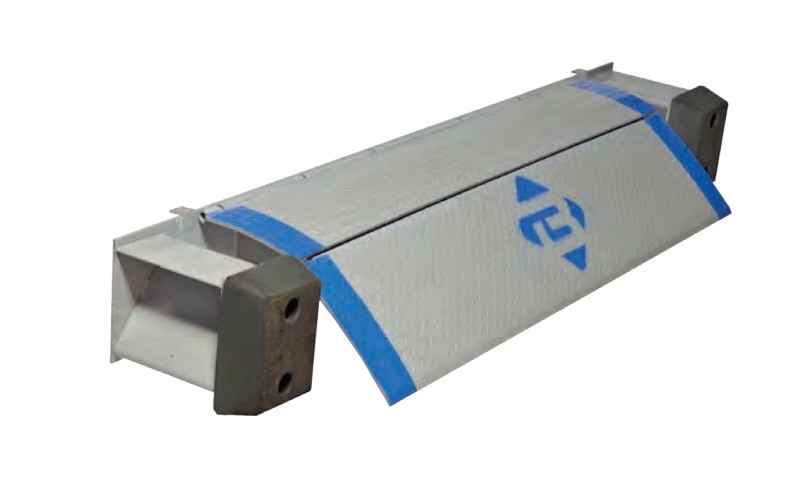

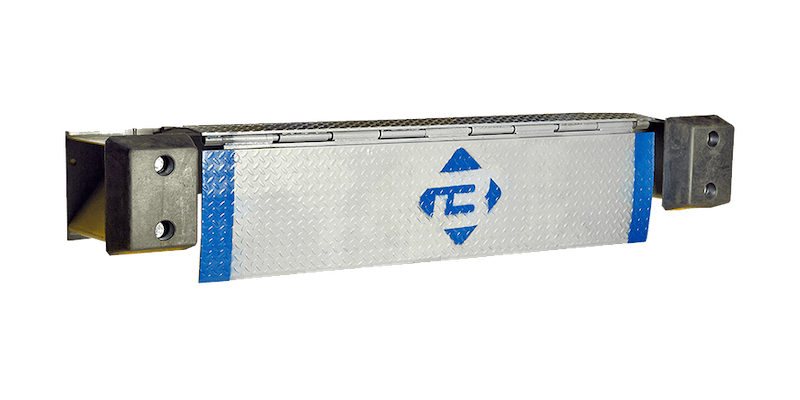

Edge-of-Dock Levelers
With a working range of 5″ above and 5″ below the dock, Edge of Dock Levelers accommodate most loading applications. Your team positions the EOD by lifting and pulling the handle to the dock floor. The latch assembly then activates the lip, projecting it forward onto the bed of the trailer as the handle is lifted. When released, the handle automatically returns to its stored position. Welding to an existing steel channel or a Bluff approach plate is required. The EOD conforms to ANSI MH30.1 Standards. Manufacturing lead time is seven working days.
| FEATURES | NOTES |
| Capacities from 20,000 to 30,000 lbs | Optional add-ons include: anchor kit, approach plate, longer lip for refrigerated trucks, steel faced bumpers & hydraulic package. |
| Available widths of 66”, 72” & 78” | Pricing reflects shipments made from Bluff's Fort Worth Location only. |
| Self-Storing Handle | Pricing from other warehouse locations can be obtained by contacting our sales team. |
| Bumper and Bumper Blocks Included | Our prices are most often below the FACTORY LIST PRICE. Don't hesitate to ask. |
| Call us at 888.977.4224 to order your specific configurations. |
EDGE OF DOCK LEVELERS (EOD) |
||||||
 |
||||||
EOD: STANDARD TRAILER |
||||||
| MODEL | LIP LENGTH | USABLE WIDTH | OVERALL WIDTH | SPAN | WEIGHT | FACTORY LIST PRICE |
20,000-lb Capacity |
||||||
| 20EP66 | 15" | 66" | 88" | 27 ¾" | 448 lbs | $1,728.00 |
| 20EP72 | 15" | 72" | 94" | 27 ¾" | 476 lbs | $1,886.00 |
| 20EP78 | 15" | 78" | 100" | 27 ¾" | 504 lbs | $2,280.00 |
25,000-lb Capacity |
||||||
| 25EP66 |
15" | 66" | 88" | 27 ¾" | 509 lbs | $1,987.00 |
| 25EP72 | 15" | 72" | 94" | 27 ¾" | 542 lbs | $2,124.00 |
| 25EP78 | 15" | 78" | 100" | 27 ¾" | 576 lbs | $2,389.00 |
30,000-lb Capacity |
||||||
| 30EP66 | 15" | 66" | 88" | 27 ¾" | 509 lbs | $2,296.00 |
| 30EP72 | 15" | 72" | 94" | 27 ¾" | 542 lbs | $2,416.00 |
| 30EP78 | 15" | 78" | 100" | 27 ¾" | 576 lbs | $2.542.00 |
 |
||||||
EOD: REFRIGERATED TRAILER |
||||||
20,000-lb Capacity |
||||||
| 20EP66-R | 17" | 66" | 88" | 29 ¾" | 463 lbs | $2,076.00 |
| 20EP72-R | 17" | 72" | 94" | 29 ¾" | 493 lbs | $2,329.00 |
| 20EP78-R | 17" | 78" | 100" | 29 ¾" | 522 lbs | $2,474.00 |
25,000-lb Capacity |
||||||
| 25EP66-R |
17" | 66" | 88" | 29 ¾" | 529 lbs | $2,213.00 |
| 25EP72-R | 17" | 72" | 94" | 29 ¾" | 564 lbs | $2,561.00 |
| 25EP78-R | 17" | 78" | 100" | 29 ¾" | 599 lbs | $2,759.00 |
30,000-lb Capacity |
||||||
| 30EP66-R | 17" | 66" | 88" | 29 ¾" | 529 lbs | $2,570.00 |
| 30EP72-R | 17" | 72" | 94" | 29 ¾" | 564 lbs | $2,924.00 |
| 30EP78-R | 17" | 78" | 100" | 29 ¾" | 599 lbs | $3.125.00 |
EDGE OF DOCK LEVELER INSTALLATION PARTS |
|||
| MODEL / PART | DESCRIPTION | WEIGHT | LIST PRICE |
| EPAP1 | Fastener kit for EPAP12C and EPAP24C; consists of 5 (ea) double expansion shields and 5 (ea) 1/2" x 13" x 3" flat-head socket 1/2" screws |
3 lbs | $121.00 |
| EPAP2 | Fastener kit for installation of the leveler; consists of 9 (ea) 3/4" x 4" wedge anchor bolts, including nuts and washers |
6 lbs | $160.00 |
| EPAP3 | Fastener kit for installation of the leveler and approach plate; consists of 9 (ea) 3/4" x 4" wedge anchor bolts, including nuts and washers; contains 5 (ea) 1/2" x 3" flat-head socket screws and 5 (ea) 1/2" double expansion shields |
7 lbs | $227.00 |
| EPAP12 | 12" long, beveled approach plate; 120" wide, with 5 (ea) 13/16" countersunk holes for mounting to top of dock |
164 lbs | $427.00 |
| EPAP24 | 24" long, beveled approach plate; 120" wide, with 5 (ea) 13/16" countersunk holes for mounting to top of dock |
328 lbs | $774.00 |
EDGE OF DOCK LEVELER REPLACEMENT PARTS |
|||
| MODEL / PART | DESCRIPTION | WEIGHT | LIST PRICE |
| EPBUMPBASE | Steel base without rubber bumpers | 43 lbs | $189.00 |
| EPCB10 | Molded bumper (ea) with steel base | 51 lbs | $234.00 |
| EPHANDLE | Handle for EP and LD | 11 lbs | $77.00 |
| EPHYDRAULIC | Complete hydraulic package | 55 lbs | $2,062.00 |
| EPRB10 | Molded bumper (ea) 10"x13" with fasteners | 17 lbs | $93.00 |
| EPSA | Springs assembly for EP and LD; includes spring slide linkage rod and fasteners | 16 lbs | $229.00 |
Call us at 888.977.4224 for special sizes and capacities.
MANUFACTURED AND TESTED IN COMPLIANCE WITH OSHA
NOTE: It is the customer's responsibility to verify product correctness of fit for applications and to verify that this product complies with all safety laws, codes, and regulations.
