The Yard Ramp Guy Storefront
The right equipment at the right price to accommodate your needs.
Yard Ramps and Loading Dock Equipment | Shop new yard ramps from Bluff, Mid-State, and Ledwell, including mobile, stationary, and mini ramps, along with dock boards, dock plates, and ramp platform components. Most new ramps are built to order in 7-10 working days.
Pricing subject to change without notice.

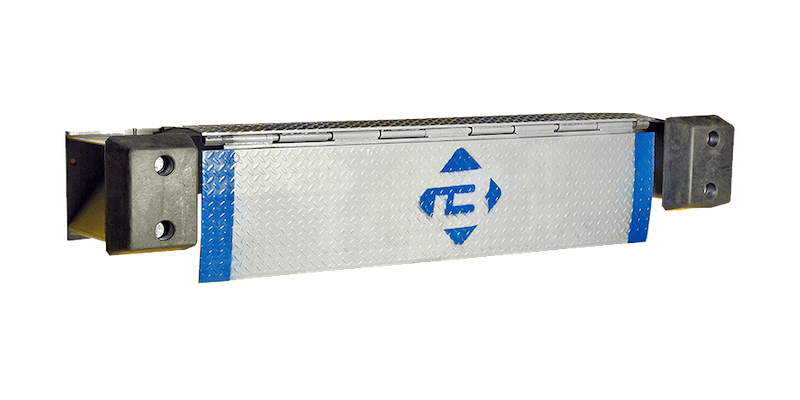

EDGE of DOCK LEVELER for STANDARD TRAILER
|
|
| * FACTORY LIST PRICE | $2,484.00
|
| * NOTE: Our prices are most often below the FACTORY LIST PRICE.
Don't hesitate to ask. |
|
| MODEL # | 30EP66 |
| AVAILABILITY | 7-10 working days |
| CONSTRUCTION | All Steel |
| CAPACITY | 30,000 lbs |
| LIP LENGTH | 15" |
| USABLE WIDTH | 66" |
| OVERALL WIDTH | 88" |
| SPAN | 27 ¾" |
| WEIGHT | 509 lbs |
| SELF-STORING HANDLE | Included |
| BUMPER & BUMPER BLOCKS | Included |
| OPTIONAL ADD-ONS | • Anchor Kit
• Approach Plate • Longer Lip for Refrigerated Trucks • Steel-faced Bumpers • Hydraulic Package |
NOTES |
| Pricing reflects shipments made from Bluff's Fort Worth Location only.
|
| Pricing from other warehouse locations can be obtained by contacting our sales team.
|
| Call us at 888.977.4224 to order your specific configurations. |
With a working range of 5″ above and 5″ below the dock, Edge of Dock Levelers accommodate most loading applications. Your team positions the EOD by lifting and pulling the handle to the dock floor. The latch assembly then activates the lip, projecting it forward onto the bed of the trailer as the handle is lifted. When released, the handle automatically returns to its stored position. Welding to an existing steel channel or a Bluff approach plate is required. The EOD conforms to ANSI MH30.1 Standards. Manufacturing lead time is seven working days.
EDGE of DOCK LEVELER INSTALLATION PARTS |
|||
| MODEL/PART | DESCRIPTION | WEIGHT | LIST PRICE
|
| EPAP1 | Fastener kit for EPAP12C and EPAP24C; consists of 5 (ea) double expansion shields and 5 (ea) 1/2" x 13" x 3" flat-head socket 1/2" screws | 3 lbs | $132.00 |
| EPAP2 | Fastener kit for installation of the leveler; consists of 9 (ea) 3/4" x 4" wedge anchor bolts, including nuts and washers | 6 lbs | $174.00 |
| EPAP3 | Fastener kit for installation of the leveler and approach plate; consists of 9 (ea) 3/4" x 4" wedge anchor bolts, including nuts and washers; contains 5 (ea) 1/2" x 3" flat-head socket screws and 5 (ea) 1/2" double expansion shields | 7 lbs | $246.00 |
| EPAP12 | 12" long, beveled approach plate; 120" wide, with 5 (ea) 13/16" countersunk holes for mounting to top of dock | 164 lbs | $462.00 |
| EPAP24 | 24" long, beveled approach plate; 120" wide, with 5 (ea) 13/16" countersunk holes for mounting to top of dock | 328 lbs | $838.00 |
EDGE of DOCK LEVELER REPLACEMENT PARTS |
|||
| MODEL/PART | DESCRIPTION | WEIGHT | LIST PRICE |
| EPBUMPBASE | Steel base without rubber bumpers | 43 lbs | $205.00 |
| EPCB10 | Molded bumper (ea) with steel base | 51 lbs | $255.00 |
| EPHANDLE | Handle for EP and LD | 11 lbs | $84.00 |
| EPHYDRAULIC | Complete hydraulic package | 55 lbs | $2,231.00 |
| EPRB10 | Molded bumper (ea) 10"x13" with fasteners | 17 lbs | $101.00 |
| EPSA | Springs assembly for EP and LD; includes spring slide linkage rod and fasteners | 16 lbs | $248.00 |
Call us at 888.977.4224 for special sizes and capacities.
MANUFACTURED AND TESTED IN COMPLIANCE WITH OSHA
Ideal Use Cases
- Warehouses without loading docks
- Construction or agricultural job sites
- Distribution centers with temporary dock access
- Freight depots requiring ground-level trailer access
- Manufacturing and recycling centers
Why Buy or Rent a Yard Ramp?
- Versatility: Good for warehousing, construction, distribution and shipping, manufacturing, agribusiness, recycling, and many other industries.
- Mobility: Choose a mobile ramp that moves on its own wheels or tires, or a stationary ramp that anchors in place.
- Safety Features: Steel curbs, serrated steel grating, and safety chains come standard on most models, with hydraulic or hand-crank leveling on mobile ramps.
- Cost Savings: Renting for shorter-term needs such as seasonal spikes often makes more sense than buying.
Why Buy or Rent From Us?
- 15 years pf experience selling and renting REAL ramp inventory.
- Responsive, personable, professional U.S.-based team.
- The experience to meet and exceed expectations.
- Yard ramps strategically located across the nation for faster delivery. Most of our inventory sits within 250 miles of 90% of the population, which speeds delivery and cuts your freight costs.
Below Factory-Direct Pricing on Standard Ramps
As a Volume Discount Dealer, we’re able to pass along savings to you, and we do just that. We invite you to compare for yourself our prices on yard ramps from the top manufacturers we represent. Many models listed include features exclusive to The Yard Ramp Guy.
The online store also features our inventory of used yard ramps located across the nation⏤the largest selection in the country. We are the only company in America that pursues used yard ramp sellers and buyers every day and offers rental ramps throughout the country. Every day.
Inventory Ramps Near You
Can’t wait for the standard production time on your new ramp? We keep an in-stock inventory of our most popular ramp sizes, strategically warehoused across the U.S. to reduce your freight cost.
Frequently Asked Questions
How do I unload a new ramp? We recommend a forklift, heavy-duty wrecker, or crane to safely unload it safely a flatbed truck. Please plan for this equipment at the time of delivery. Know that more than half our customers take advantage of our turnkey services: through our national network, we are able to handle delivery, off-loading, and installation. Click HERE for details.
Can I use this ramp on gravel or dirt surfaces? Yard ramps generally work on rough or raw surfaces. To make sure your choice of ramp mobility fits your needs, we’ll talk through your application, weather, end users, and expectations.
Are your ramps OSHA compliant? Yes. All our ramps are designed with safety curbs and anti-slip surfaces to support OSHA compliance. Check your state regulations HERE.
Can I finance this ramp? Yes! We offer flexible financing through APPROVE, Ascentium, and Crest Capital for qualified yard ramp buyers. Click HERE for additional information.
