Steel Dock Boards
The Difference
Dock Plates are rectangles of steel or aluminum with some type of locking leg and either hand hole or handles to move them. Plates are NEVER for power equipment. They are ideal for hand truck and pallet jack traffic … manually moved. They offer the lightest and most cost effective answer to your loading / unloading challenges.
Dock Boards are like plates but with the addition of structural components above the plate (curbs) and sometimes on the underside as is the case with rail boards. There are different types of locking devices from fixed legs to drop pins or locking rings. Dock Boards are for forklift and other vehicle traffic. They are best specified by an expert who can take all aspects of your application into consideration. With the correct dock board you can expect SAFETY – LONGEVITY – PRODUCTIVITY.

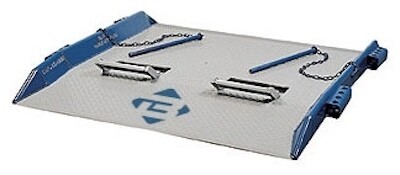

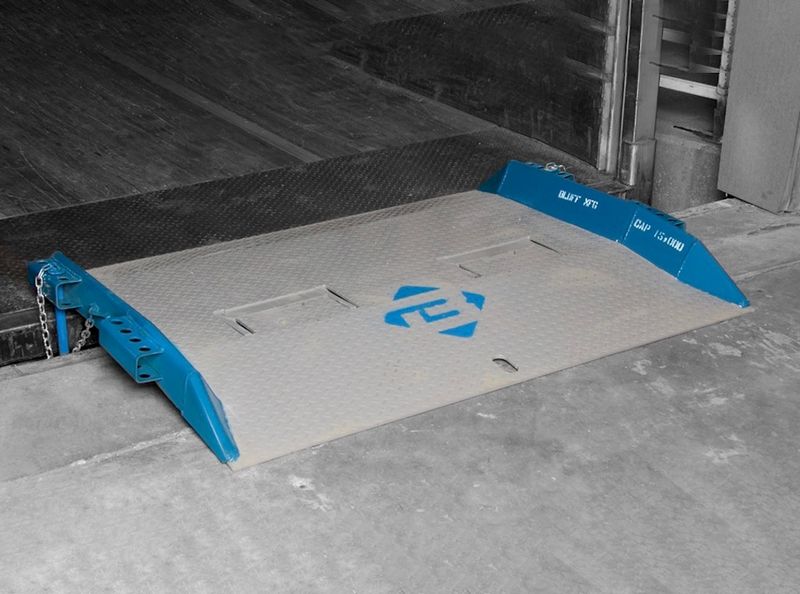

Model T: 15,000 lb Capacity |
||||||
|
Model T utilizes locking pins for secure placement and comes with lifting loops. |
||||||
| MODEL (click↓) | FACTORY LIST PRICE | HEIGHT UP Pallet Truck/Elec Forklift 14% |
HEIGHT UP Propane Forklift 19% |
WIDTH | LENGTH | WEIGHT |
| 15T6048 | $2,000.00 | 5" | 7" | 60" | 48" | 408 lbs |
| 15T6060 | $2,408.00 | 7" | 9" | 60" | 60" | 487 lbs |
| 15T6072 | $2,723.00 | 8.5" | 11" | 60" | 72" | 568 lbs |
| 15T6084 | $3,196.00 | 10" | 13" | 60" | 84" | 650 lbs |
| 15T7248 | $2,272.00 | 5" | 7" | 72" | 48" | 480 lbs |
| 15T7260 | $2,746.00 | 7" | 9" | 72" | 60" | 583 lbs |
| 15T7272 | $3,020.00 | 8.5" | 11" | 72" | 72" | 688 lbs |
| 15T7284 | $3,395.00 | 10" | 13" | 72" | 84" | 793 lbs |
| 15T7296 | $3,768.00 | 12" | 15" | 72" | 96" | 899 lbs |
| 15T8448 | $2,610.00 | 5" | 7" | 84" | 48" | 544 lbs |
| 15T8460 | $3,193.00 | 7" | 9" | 84" | 60" | 660 lbs |
| 15T8472 | $3,427.00 | 8.5" | 11" | 84" | 72" | 777 lbs |
| 15T8484 | $3,872.00 | 10" | 13" | 84" | 84" | 895 lbs |
| 15T8496 | $4,315.00 | 12" | 15" | 84" | 96" | 1,014 lbs |
Model T: 20,000 lb Capacity |
||||||
Aluminum vs Steel Dock Equipment
Aluminum Dock Plates often make sense because of the lighter capacity and the need to manually move the dock plate.
Aluminum Dock Boards are the best choice for certain applications that take advantage of aluminum properties. For the same rated capacity, the boards are considerably lighter than steel. Aluminum is ideal for applications where sparking is a concern. Additionally, aluminum does not rust to the same extent that steel does, making it an excellent choice for corrosive environments.
Steel Dock Boards are the better alternative for higher capacity applications. Steel is much more durable with a longer lifespan. Also, for the same capacity, steel boards tend to be less expensive.
ANSI Standard: Bluff tests its dock boards and dock plates to ensure they perform in accordance with the ANSI standard.
NOTE: It is the customer's responsibility to verify product correctness of fit for applications and to verify that this product complies with all safety laws, codes, and regulations.
