MINI RAMP |
|
| FACTORY LIST PRICE | $11,060.00 * |
| * NOTE: Our prices are most often below the FACTORY LIST PRICE. Don't hesitate to ask. |
|
| MODEL # | 16MR7015 |
| AVAILABILITY | 7-10 working days |
| CONSTRUCTION | All Steel |
| CAPACITY | 16,000 lbs |
| WIDTH | 70" |
| LENGTH | 15' |
| WEIGHT | 2,087 lbs |

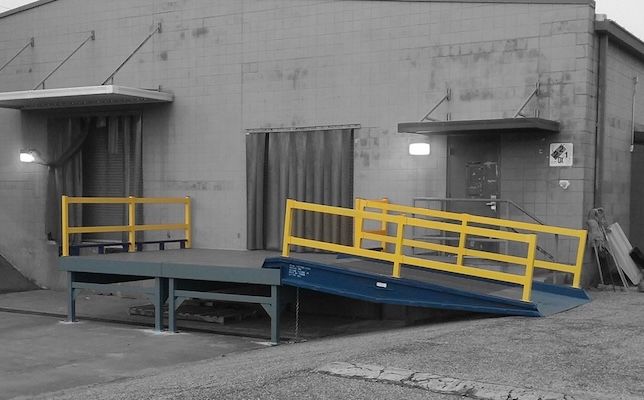

Mini Ramps are built Bluff Tough. These smaller dimensions don't compromise at all on strength. A world of applications have target heights that are one-half or less than half of normal dock height. When your high side is 32” or less, consider this economical solution.
With the optional mobility package, the Mini does not need the hydraulic-actuated undercarriage for your team to position the ramp. Two screw jacks with rigid steel casters are mounted at the balance point, and a couple of people can move it on a hard surface. Floor plate approaches, both top and bottom, insure a long life on the grating, whether you are using manual equipment or forklift trucks.
Features for Mini Loading Ramps |
Mobility Package Option |
| Curb Design Same as Full Size Ramp |
Mini Ramp Screw Jack & Wheel (pair) |
| 8" of Curb Above Drive Surface | Use Wheels to Move Ramp into Position |
| Top/Bottom Steel Diamond Deck Approach Plates | Hand Cranks Rotate 90 Degrees & Self-store |
| Serrated Steel Grating for Traction & Self-cleaning | Click the Option Above if Needed |
| Capacities from 12,000 lbs to 60,000 lbs | Mobility Package: $772.00 Additional |
Pricing subject to change without notice. Call 888.977.4224 for special sizes and capacities.
MANUFACTURED AND TESTED IN COMPLIANCE WITH OSHA
Below Factory-Direct Pricing on Standard Ramps
The online store also features our inventory of used yard ramps located across the nation⏤the largest selection in the country! We are the only company in America that pursues used yard ramp sellers and buyers every day and offers rental ramps throughout the country. Every day.
Inventory Ramps Near You
Can’t wait for the standard production time on your new ramp? We offer an in-stock inventory of our most popular ramp sizes. These are strategically warehoused across the U.S. to reduce your freight cost.
